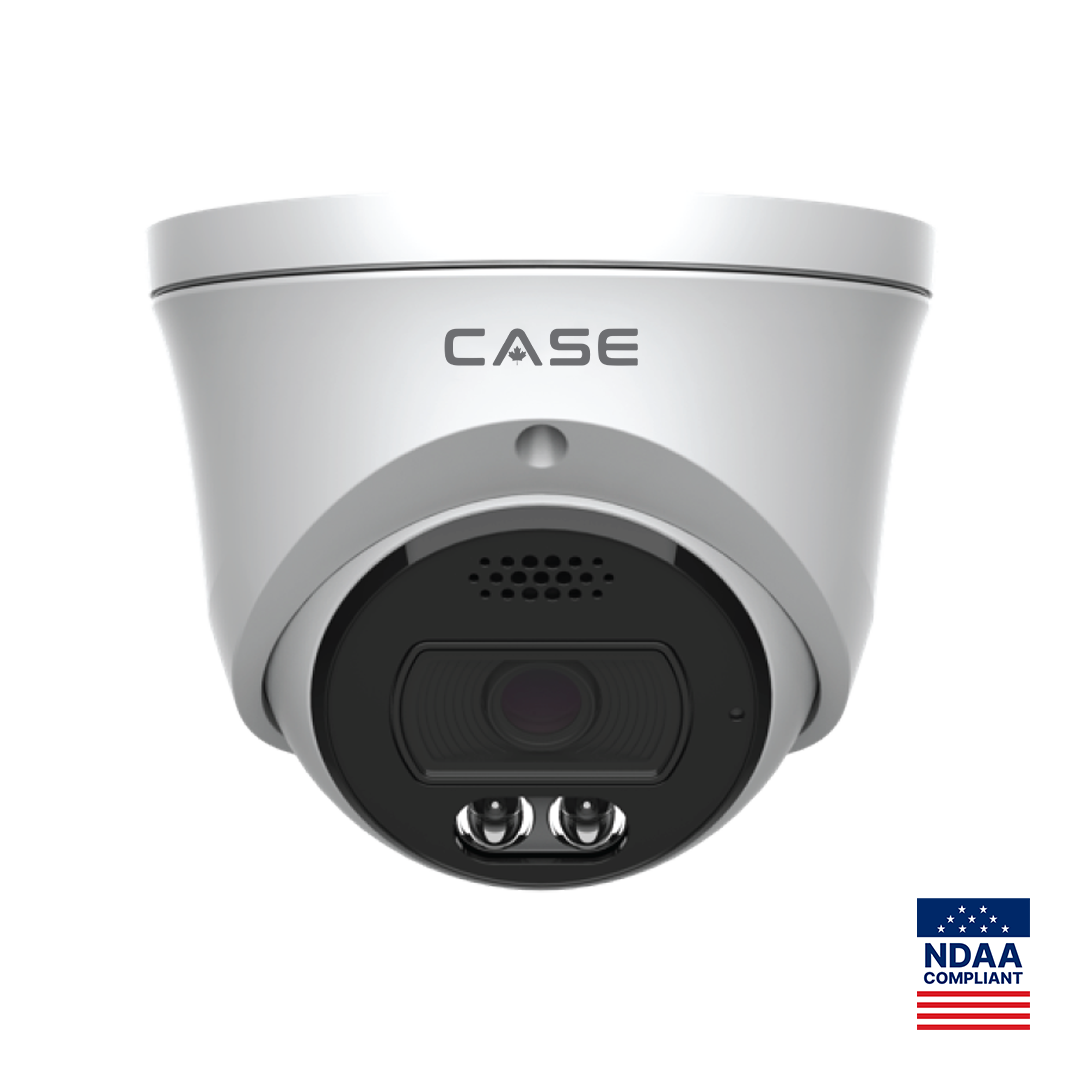

CS-I5XQ II-2.8mm
5MP Fixed Active Deterrent Turret Network Camera
Description
Description
- Metal housing
- Up to 5MP,3072*1728@30fps
- S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
- Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
- IR range up to 50m
- 1×Built-in Mic, 1×Built-in Loudspeaker
- Support microSD/microSDHC/microSDXC card,up to1TB(Built-in)
- Support smart surveillance, face capture
- Support human/vehicle/non-motor vehicle/pet(cat, dog) classification
- Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
- DC12V±25%,Max. 9W, PoE:IEEE 802.3at,Max.10W
- IP66
6-YEAR WARRANTY
Contact us for price
Have a question?
- Description
- Specifications
- Download
- Product Reviews
- Metal housing
- Up to 5MP,3072*1728@30fps
- S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG
- Color:0.002Lux@(F1.6,AGC ON),B/W:0Lux with IR
- IR range up to 50m
- 1×Built-in Mic, 1×Built-in Loudspeaker
- Support microSD/microSDHC/microSDXC card,up to1TB(Built-in)
- Support smart surveillance, face capture
- Support human/vehicle/non-motor vehicle/pet(cat, dog) classification
- Operating conditions -40℃~65℃(-40℉~149℉), ≤95%RH
- DC12V±25%,Max. 9W, PoE:IEEE 802.3at,Max.10W
- IP66
6-YEAR WARRANTY
| Camera Type | IP Cameras, Turret Cameras |
|---|---|
| Image Sensor | 5MP |
| Minimum Illumination | Color: 0.002 |
| Max. IR Distance | 30m |
| Material | Metal |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Built In Microphone | Yes |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Spec Sheets | CS-I5XQ II-2.8mm |
| Max. Resolution | Up to 3072*1728@30fps |
| Night Vision | NightBright |
| Weatherproof | IP66 |
| Series | Intelligent |
| Lens | 2.8 mm |
| Operating Conditions | -40°C to 65°C, 0~95% RH |
| White Light Distance | 30m |
| Built In Speaker | Yes |
| AI | human/vehicle/Non-motor Vehicle/Pet(Cat, Dog) Classification|Tripwire| Double Tripwire| Perimeter| Object Abandon| Object Lost| Heatmap| Loitering| Running| Parking| Crowd Detection| People Counting| Safety Helmet Detection| On Duty Detection| Video Abnormal| Audio Abnormal| Face Capture| |
