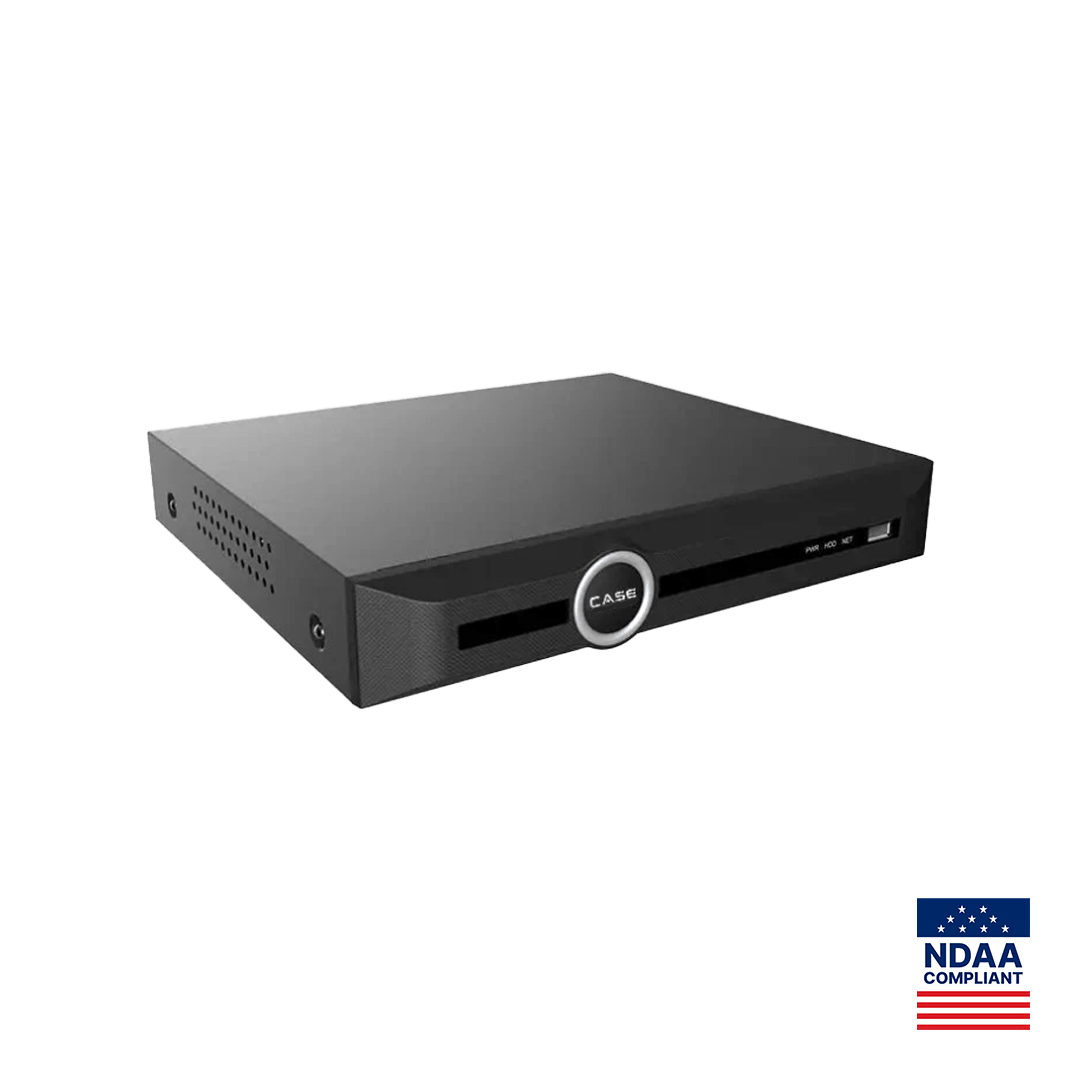

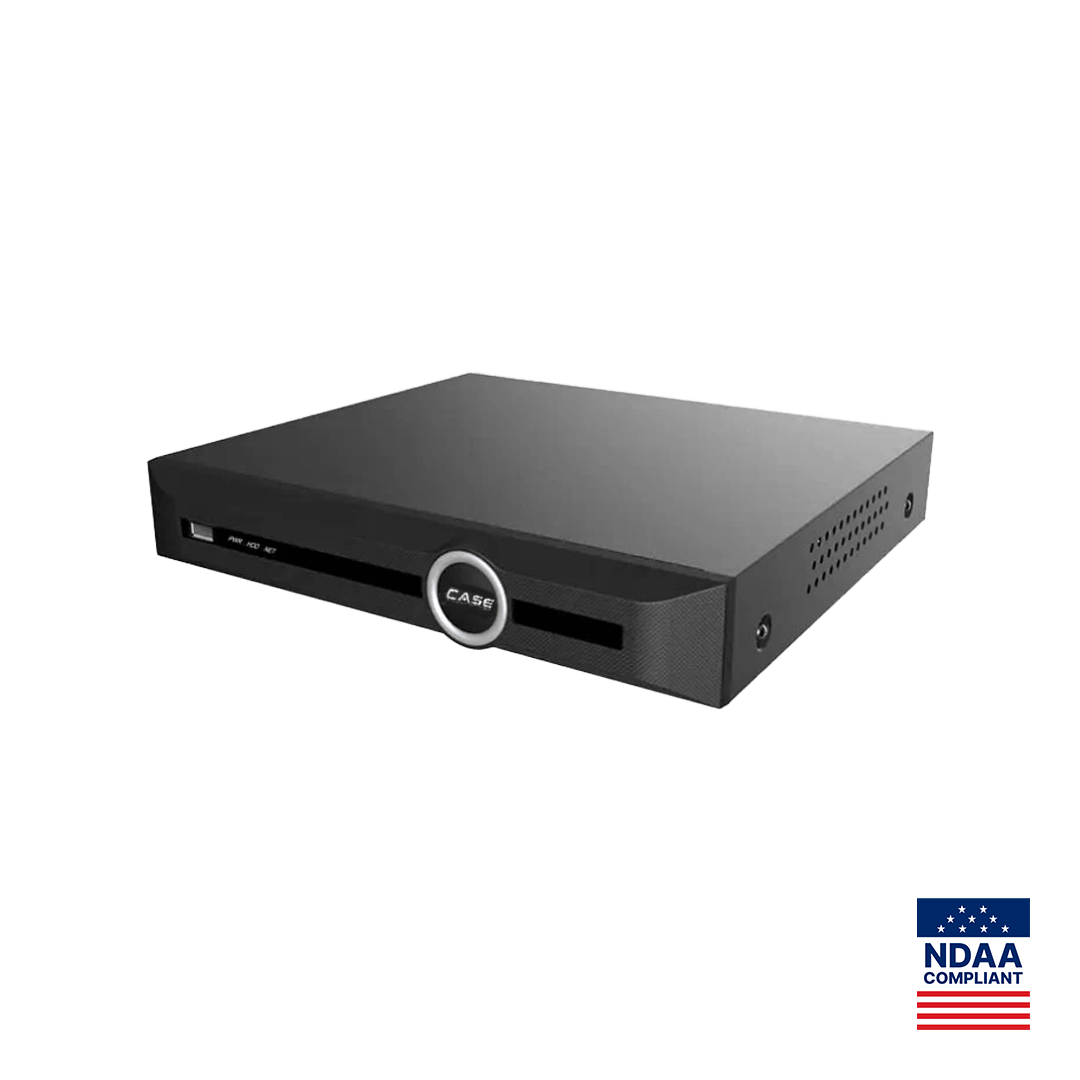

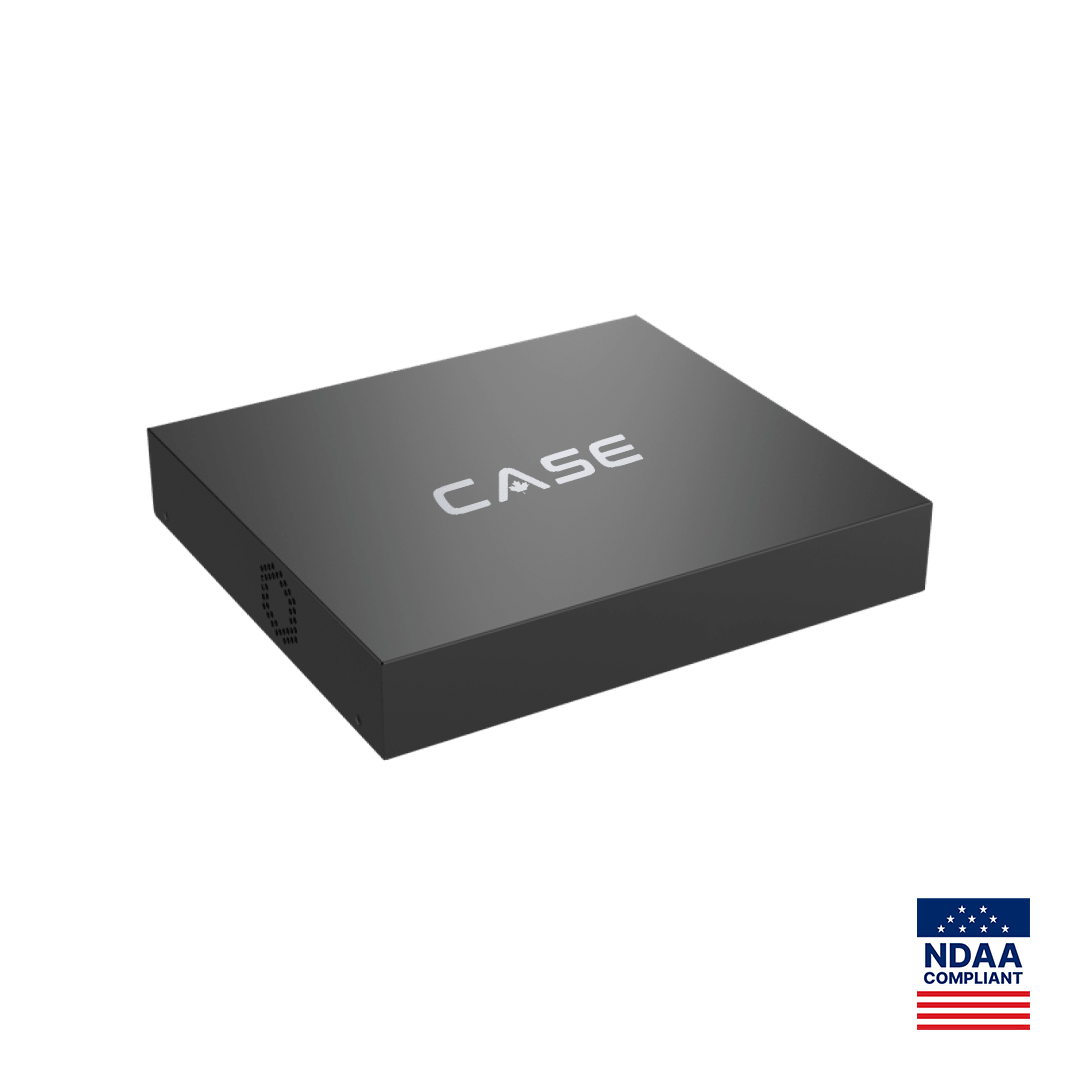

CS-N105 P4
5ch (4PoE) NVR
Description
Description
- Up to 5-ch IP camera accesses
- Incoming/Outgoing bandwidth: 100Mbps/80Mbps
- S+265, H.265, S+264, H.264 video formats
- Max. decoding capability: 16MP(30fps)×1, 8MP(30fps)×2 or 1080P(30fps)×5
- 5-ch synchronous playback
- Up to 10 TB capacity for each HDD
- Simultaneous HDMI and VGA outputs
- HDMI output at up to 4K resolution
- 1×RJ-45,10/100 Mbps self-adaptive Ethernet port
- PoE interface, 4×RJ45,10/100 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
Have a question?
- Description
- Specifications
- Download
- Product Reviews
- Up to 5-ch IP camera accesses
- Incoming/Outgoing bandwidth: 100Mbps/80Mbps
- S+265, H.265, S+264, H.264 video formats
- Max. decoding capability: 16MP(30fps)×1, 8MP(30fps)×2 or 1080P(30fps)×5
- 5-ch synchronous playback
- Up to 10 TB capacity for each HDD
- Simultaneous HDMI and VGA outputs
- HDMI output at up to 4K resolution
- 1×RJ-45,10/100 Mbps self-adaptive Ethernet port
- PoE interface, 4×RJ45,10/100 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
| Spec Sheets | CS-N105 P4 |
|---|---|
| Series | Sharp |
| IP Video Output | 5CH |
| PoE Port | 4 PoE Ports |
| Bandwidth I/O | 80Mbps / 80Mbps |
| Max Resolution Support | 8MP |
| Display Ports | HDMI and VGA (simultaneous) |
| Storage | 1x10TB HDD |
| NVR Alarm I/O | 4/1 |
| Ethernet Port | 1xRJ-45 Port, 10/100Mbps |
