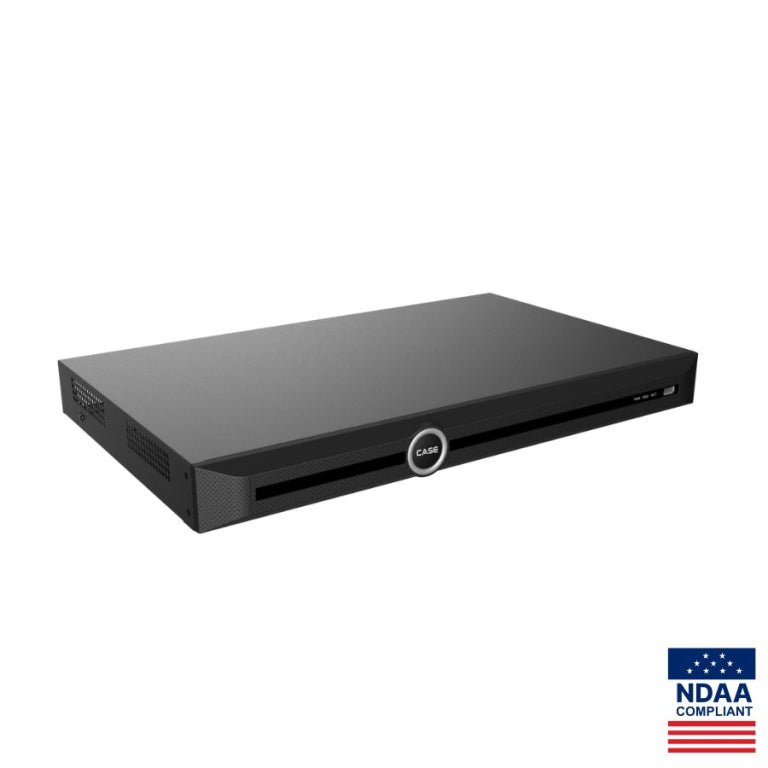

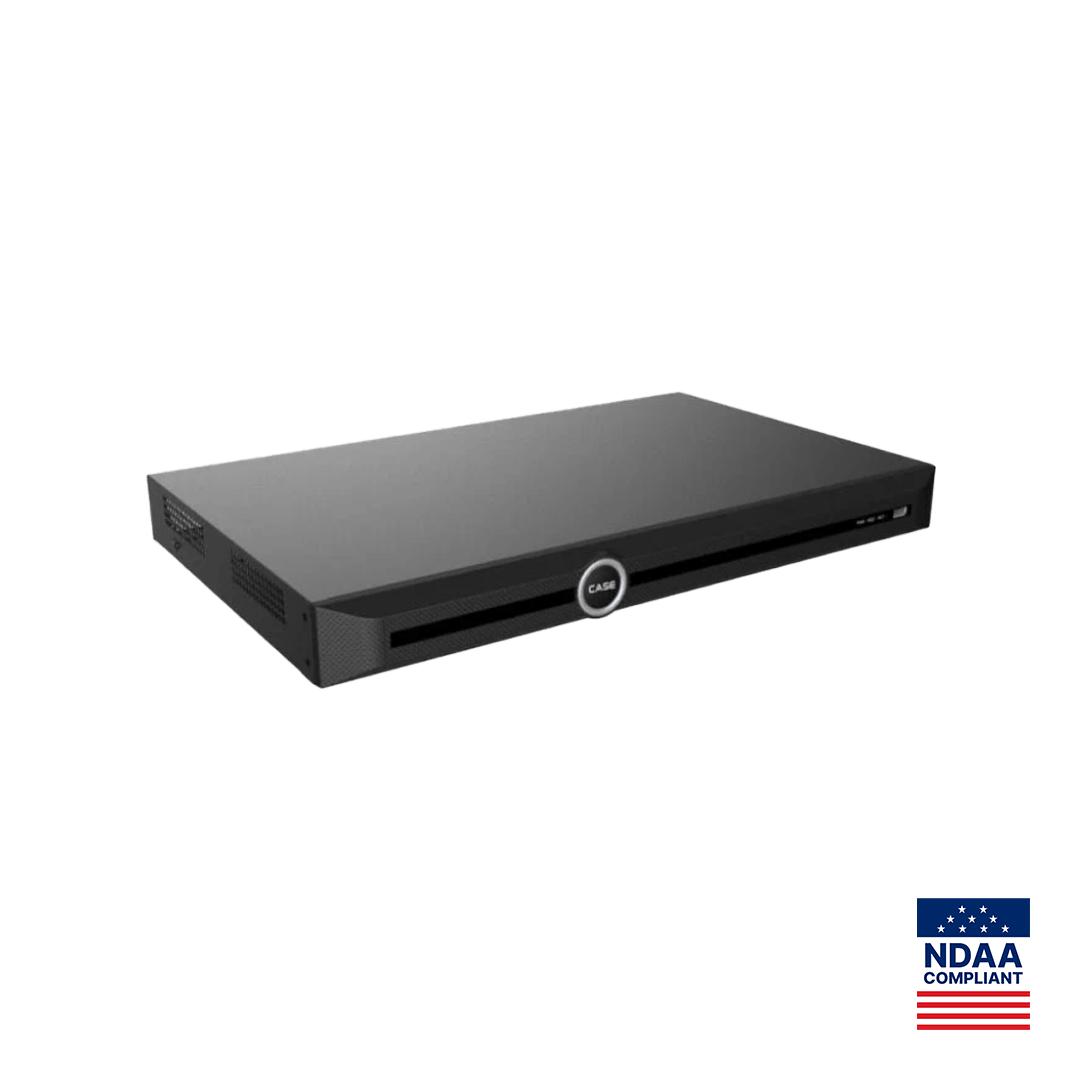

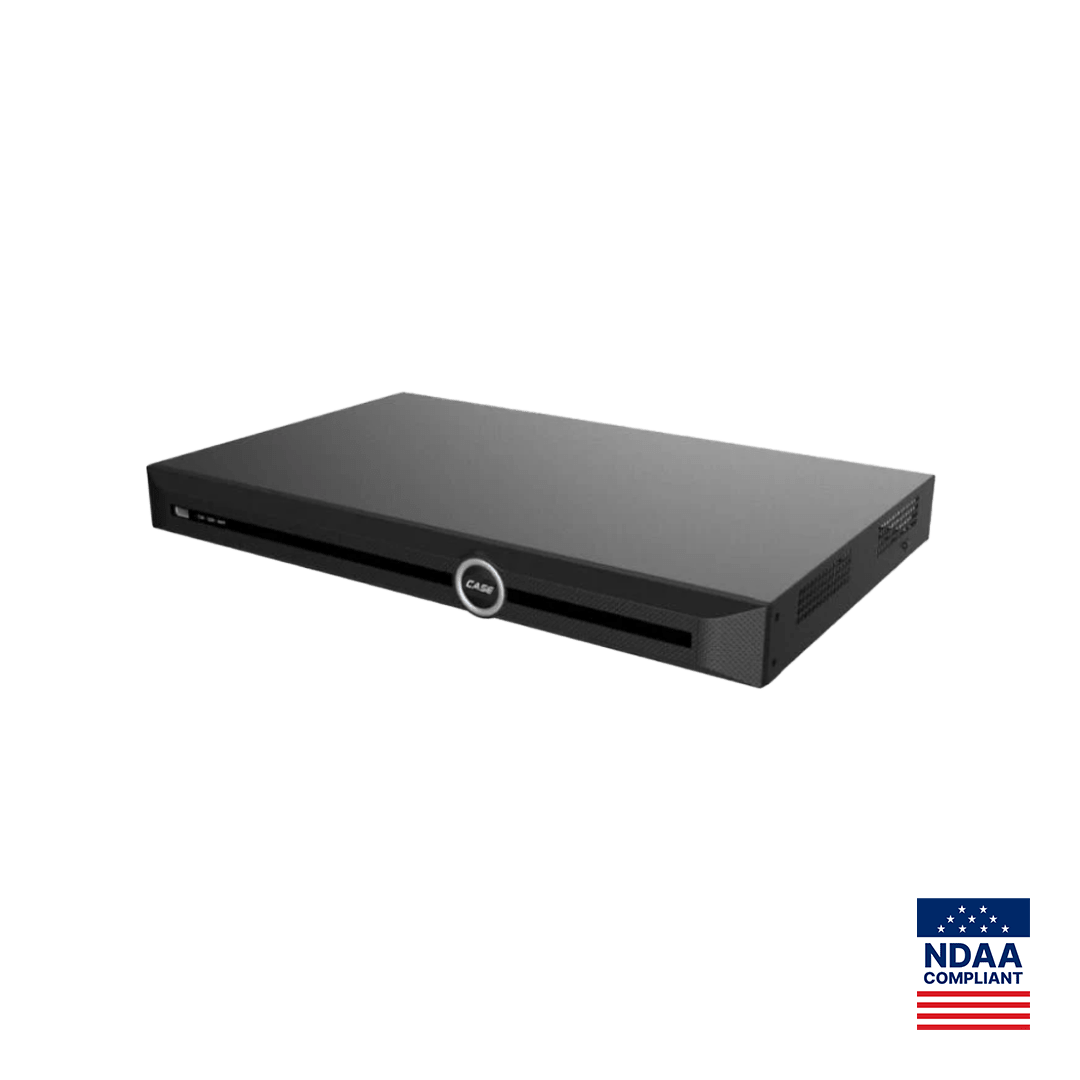

CS-N220 P16H-AI

HD Input

• Plug and play
• S+265/H.265/H.264 video formats
• Connectable to the third-party network cameras
• Up to 20-channel input
• 16 PoE ports
• Supports live view, storage, and playback of the connected camera at up to 8MP resolution

HD Output

• 1×HDMI and 1×VGA simultaneous outputs
• HDMI Video output at up to 4K (3840 × 2160) resolution

HD Storage

• 2 SATA interfaces, up to 10TB for each HDD
• S+265 compression effectively reduces the storage space and costs by up to 75%

HD Transmission

• 1xRJ45 self-adaptive 10/100/1000 Mbps network interface
• PoE Port: 16×RJ45 self-adaptive 10/100 Mbps network interfaces

Various Applications

• Centralized management of IP cameras, including configuration, information import/export, real-time information display, upgrade, etc.
• Connectable to smart IP cameras from Tiandy and the recording, playing back, and backing up of VCA alarms
  can be realized
• VCA detection alarm is supported
• Smart search for the selected area in the video and smart playback to improve the playback efficiency
• Web6 supports plug-in-free browsing and can preview videos on all browsers
• Support cloud upgrade
• Support 250m long-distance transmission

6-YEAR WARRANTY
