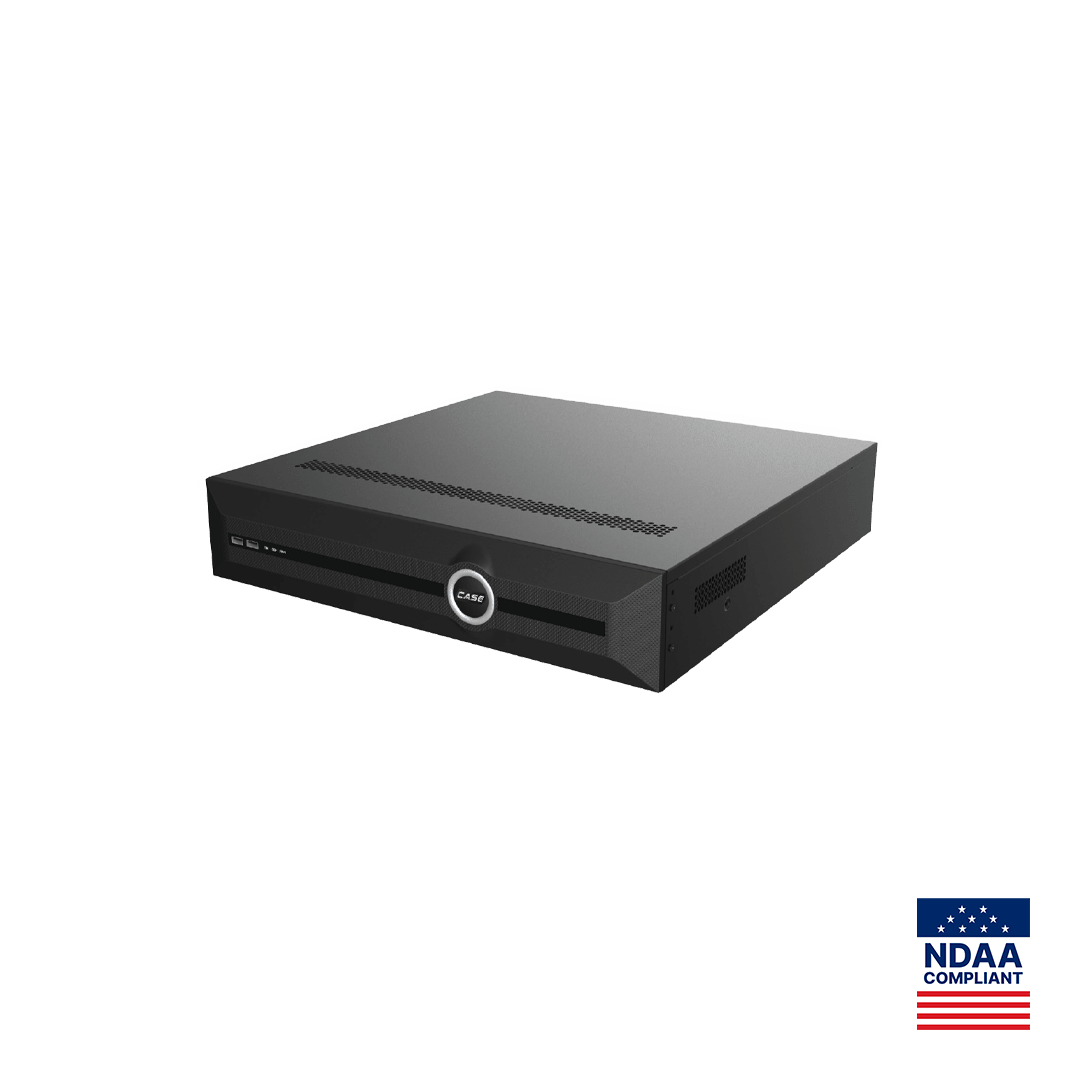

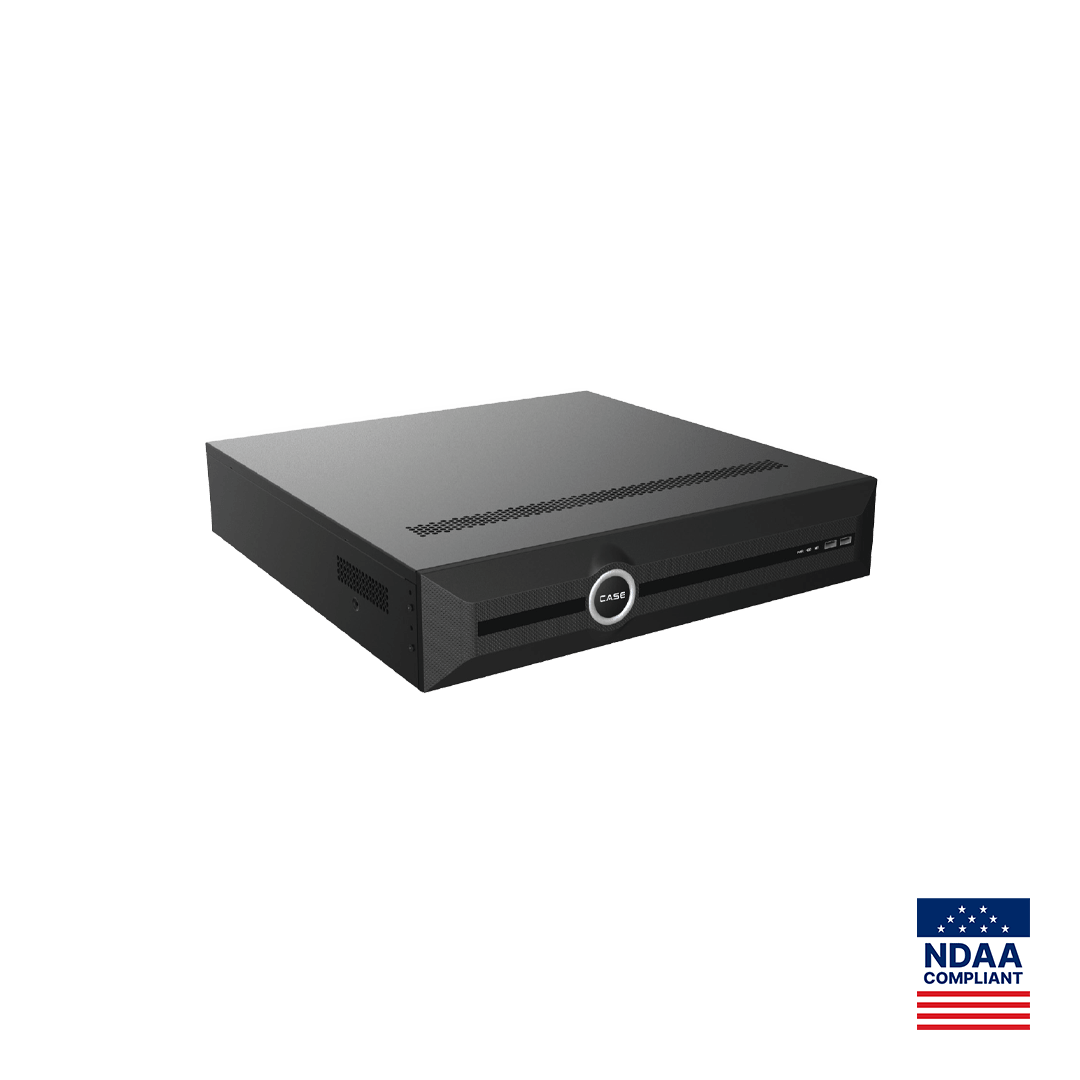

CS-N880 H-AI
8HDD 80ch AI NVR
Description
Description
- Up to 80-ch IP camera accesses
- Incoming/Outgoing bandwidth: 400Mbps(AI on: 320Mbps)/400Mbps(AI on: 200Mbps)
- S+265, H.265, S+264, H.264 video formats
- Max. decoding capability: 16MP(30fps)×3 or 1080P(30fps)×28
- Up to 16 channels-ch synchronous playback
- Up to 24 TB capacity for each HDD
- Simultaneous HDMI1 and VGA1 outputs; Simultaneous HDMI2 and VGA2 outputs
- HDMI output at up to 4K resolution
- 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
Have a question?
- Description
- Specifications
- Download
- Product Reviews
- Up to 80-ch IP camera accesses
- Incoming/Outgoing bandwidth: 400Mbps(AI on: 320Mbps)/400Mbps(AI on: 200Mbps)
- S+265, H.265, S+264, H.264 video formats
- Max. decoding capability: 16MP(30fps)×3 or 1080P(30fps)×28
- Up to 16 channels-ch synchronous playback
- Up to 24 TB capacity for each HDD
- Simultaneous HDMI1 and VGA1 outputs; Simultaneous HDMI2 and VGA2 outputs
- HDMI output at up to 4K resolution
- 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port
- S+ 265 compression effectively reduces the storage space by up to 75%
- Support cloud upgrade
| Spec Sheets | CS-N880 H-AI |
|---|---|
| Series | Intelligent |
| IP Video Output | 80CH |
| PoE Port | N/A |
| Bandwidth I/O | 400Mbps/400Mbps |
| Max Resolution Support | 16MP |
| Display Ports | Simultaneous HDMI1 and VGA1 outputs; Simultaneous HDMI2 and VGA2 outputs |
| Storage | 8x24TB HDD |
| NVR Alarm I/O | 16 Alarm Inputs / 4 Outputs |
| Ethernet Port | 2×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port |
| AI By NVR | Face Detection| Face Recognition| Video Structuralization(excludes vehicle detction)| Tripwire| Double Tripwire| Perimeter| Object Abandon| Object Missing| Running| Parking|Heatmap| Sleeping on Duty Detection| On Duty Detection| Loitering| Smart Motion Detection |
