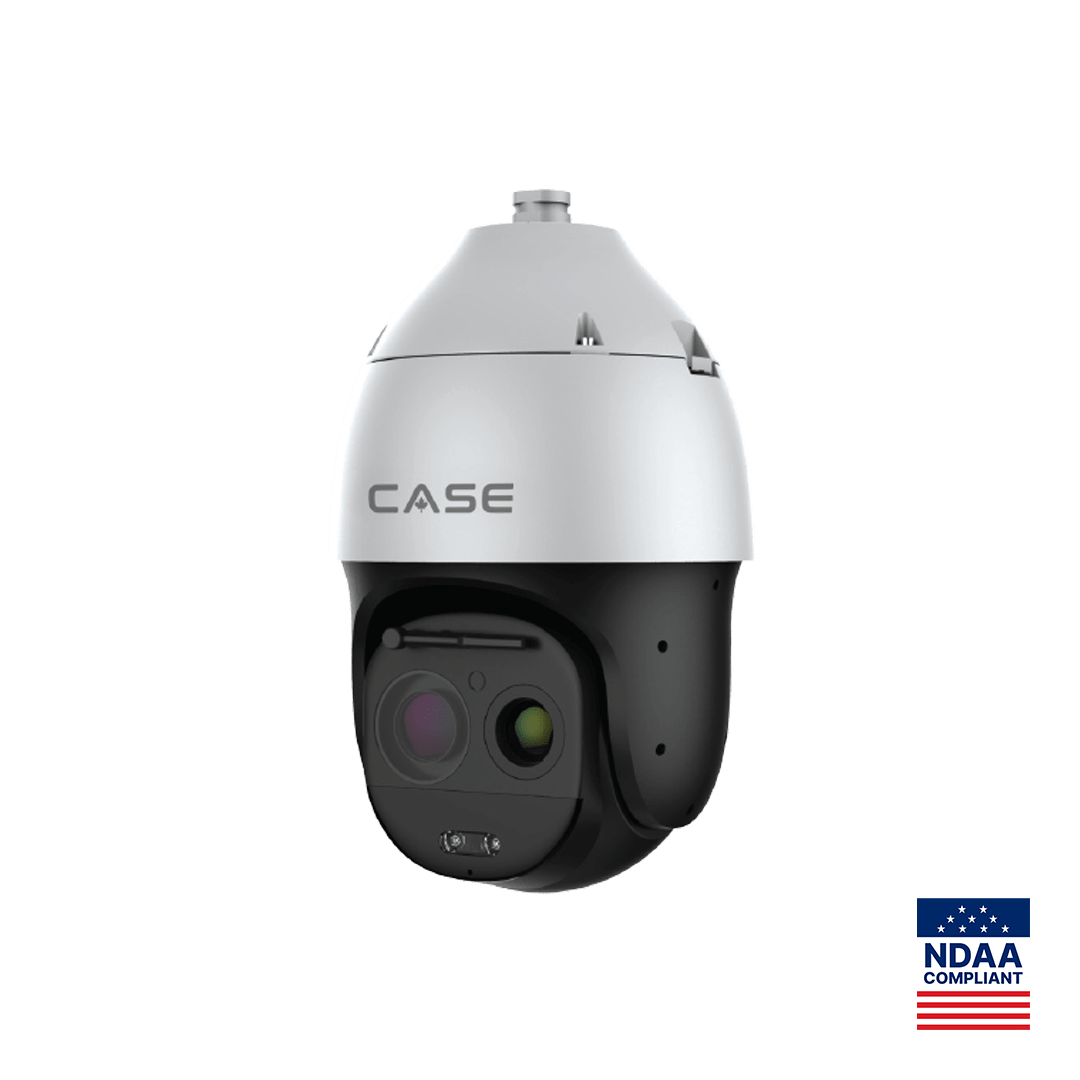

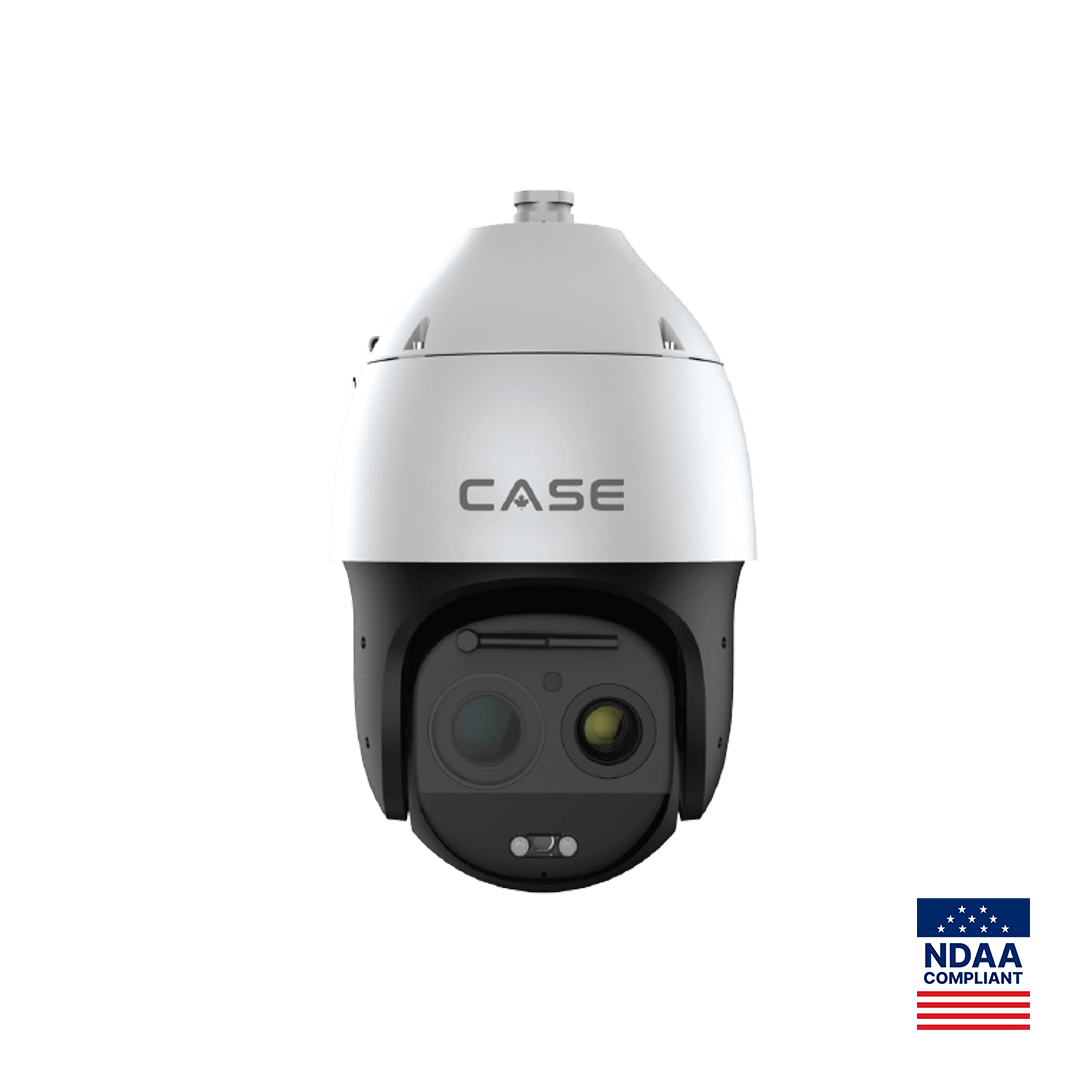

CS-P58M T-44X

Thermal & Optical Bi-spectrum AI PTZ Camera

Description

·Supports optical and thermal bi-spectrum image ·Vanadium Oxide Uncooled Focal Plane Arrays ·Thermal Resolution 384×288 ·Optical Resolution up to 3072×1728@30fps ·Min. illumination Color: 0.001Lux@F1.6 ·Optical zoom: 44×, digital zoom 16× ·Smart IR, IR Range: 300m ·Bulit-in Speaker ·Built-in Automatic Wiper
·Built-in Electronic Compass ·Support GPS/BDS ·S+265/H.265/H.264/M-JPEG ·Intelligent monitoring/Face Capture mode ·Support Human/Vehicle Classification ·Support Laser Point ·Plugin Free ·IP66

3-YEAR WARRANTY

Product variants

·Supports optical and thermal bi-spectrum image ·Vanadium Oxide Uncooled Focal Plane Arrays ·Thermal Resolution 384×288 ·Optical Resolution up to 3072×1728@30fps ·Min. illumination Color: 0.001Lux@F1.6 ·Optical zoom: 44×, digital zoom 16× ·Smart IR, IR Range: 300m ·Bulit-in Speaker ·Built-in Automatic Wiper
·Built-in Electronic Compass ·Support GPS/BDS ·S+265/H.265/H.264/M-JPEG ·Intelligent monitoring/Face Capture mode ·Support Human/Vehicle Classification ·Support Laser Point ·Plugin Free ·IP66

3-YEAR WARRANTY

Camera Type	PTZ Cameras, IP Cameras, Thermal Cameras
Image Sensor	5MP
Minimum Illumination	0.001 Lux
Max. IR Distance	300m
Audio I/O	1/1
Alarm I/O	8/2
Video Compression	S+265/H.265/H.264/M-JPEG
Spec Sheets	CS-P58M T-44X
Max. Resolution	3072×1728@30fps
Weatherproof	IP66
Series	Intelligent
Lens	6mm~264mm
Memory Slot	256GB
Operating Conditions	-40°C to 70°C (IR OFF), -40°C to 40°C (IR ON), 0-95%RH
Built In Speaker	Yes
Pixel Interval	17µm
Thermal Resolution	384×288
Thermal Sensitivity:NETD	≤40mK@f/1.0
Zoom	44X
Auto Tracking	Yes
Measurement Distance	Detection: 4510m (vehicle), 1471m (human)
AI	Tripwire\| Double Tripwire\| Perimeter\| Object Abandon\| Object Lost\| Loitering\| Running\| Heatmap\| Crowd Detection\| People Counting\| On Duty Detection\| Safety Helmet Detection\| Video Abnormal\| Audio Abnormal\| Face Capture\| Human/Vehicle Classification
