CS-P66V 25XA-180

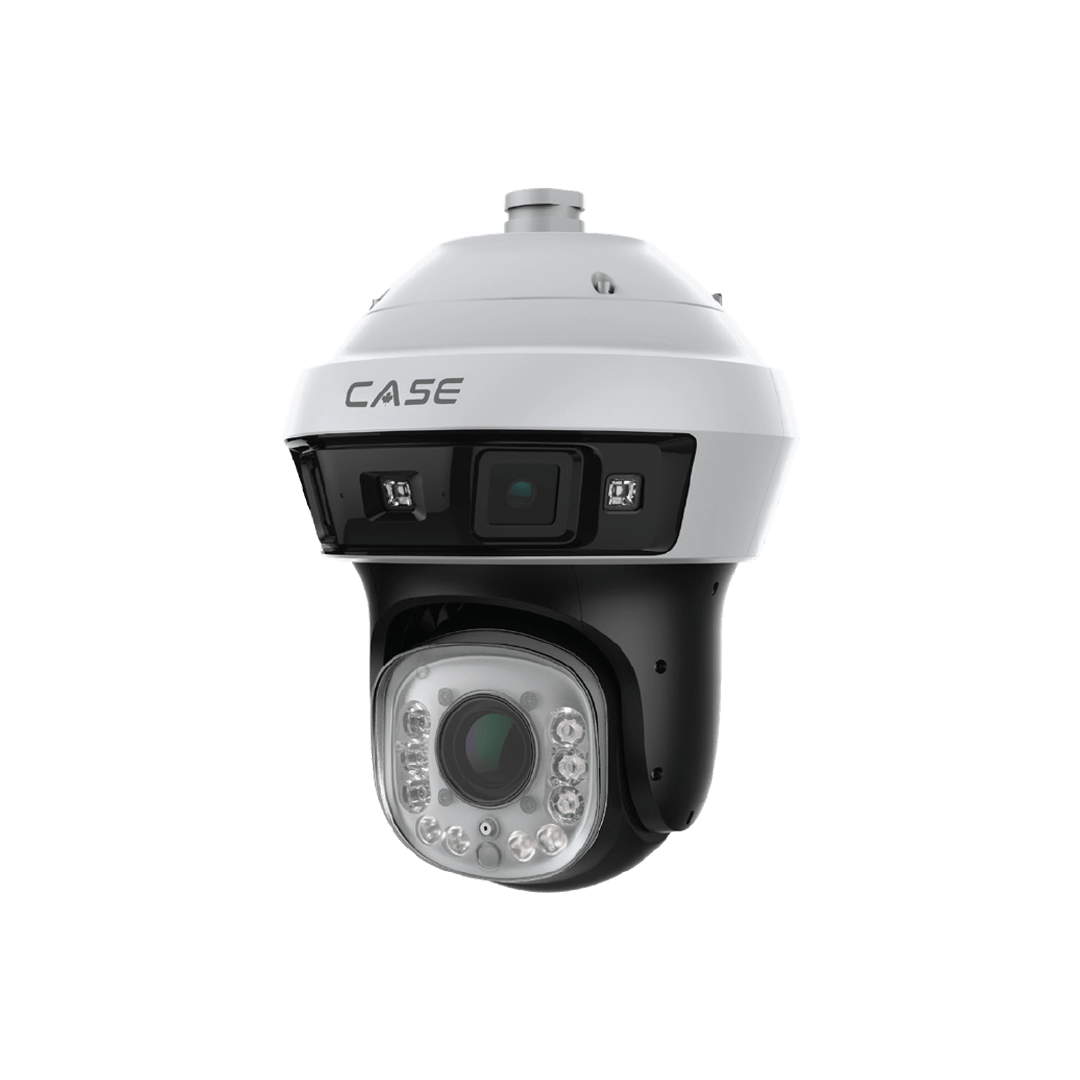

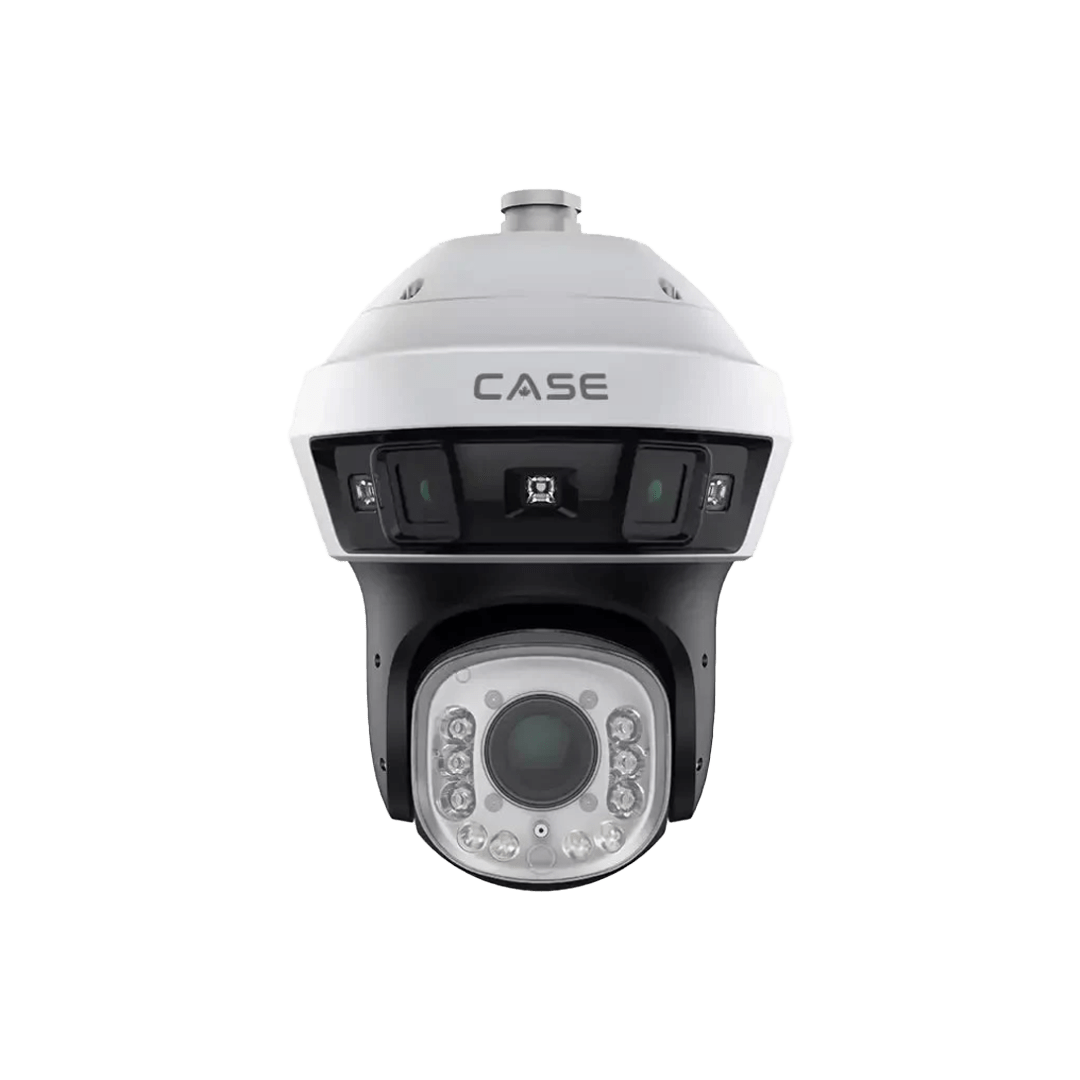

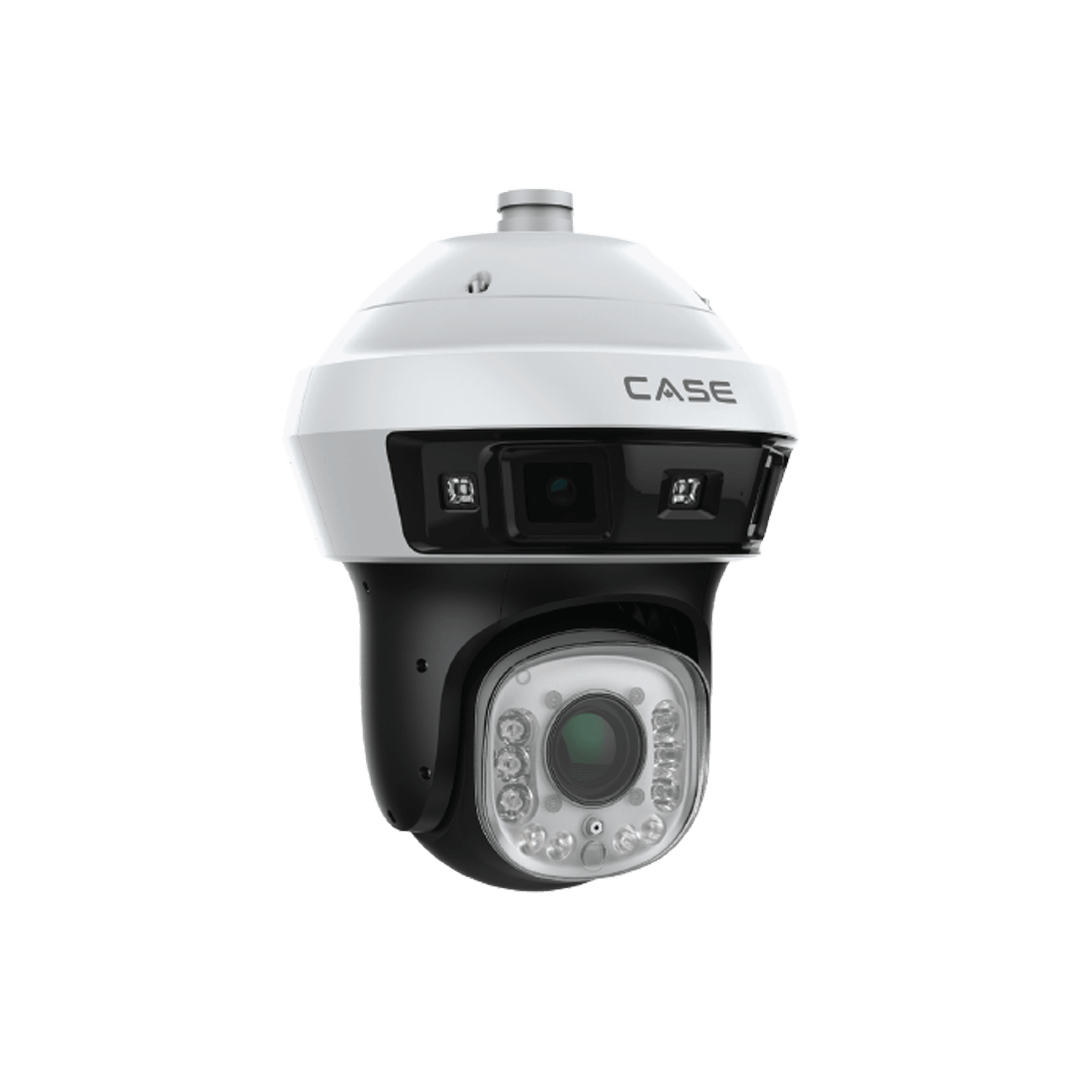

6MP PTZ PhotonX Panoramic Camera
Description
Description
- Up to Panorama:3840×1568@25fps Detail:2560×1440@25fps
- Panorama:0.0001lux Detail:0.001Lux
- Panorama:S+265/H.265/H.264/M-JPEG
- Detail:S+265/H.265/H.264/M-JPEG
- Built-in Micro SD card slot, up to 512 GB
- Support Panorama:Smart surveillance Detail:Smart surveillance
- Support Panorama:Human/Vehicle Classification
- Detail:Human/Vehicle Classification
- Operating Conditions -30℃～65℃(IR OFF) -30℃～40℃(IR ON), 0-95%
- AC24V±25%\DC24V±10%, POE IEEE802.3BT
- IP66
Have a question?
- Description
- Specifications
- Download
- Product Reviews
- Up to Panorama:3840×1568@25fps Detail:2560×1440@25fps
- Panorama:0.0001lux Detail:0.001Lux
- Panorama:S+265/H.265/H.264/M-JPEG
- Detail:S+265/H.265/H.264/M-JPEG
- Built-in Micro SD card slot, up to 512 GB
- Support Panorama:Smart surveillance Detail:Smart surveillance
- Support Panorama:Human/Vehicle Classification
- Detail:Human/Vehicle Classification
- Operating Conditions -30℃～65℃(IR OFF) -30℃～40℃(IR ON), 0-95%
- AC24V±25%\DC24V±10%, POE IEEE802.3BT
- IP66
| Camera Type | PTZ Cameras, IP Cameras |
|---|---|
| Image Sensor | Panorama: 6 MP- PTZ: 4 MP |
| Minimum Illumination | 0.0001 Lux |
| Max. IR Distance | 150m |
| Material | Metal |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Built In Microphone | No |
| Video Compression | S+265/H.265/H.264/M-JPEG |
| Spec Sheets | CS-P66V 25XA-180 |
| Max. Resolution | Panorama: 3840× 1568 @ 30 fps - PTZ: 2560× 1440@ 30 fps |
| Night Vision | PhotonX |
| Weatherproof | IP66 |
| Series | Intelligent |
| Lens | Panorama: 2.8mm- PTZ: 4.8-120mm |
| Memory Slot | 512GB |
| Operating Conditions | -30℃~65℃, 0~95% RH |
| White Light Distance | 30m |
| Built In Speaker | Yes |
| Zoom | 25X |
| Auto Tracking | Yes |
| Panorama AI | Tripwire| Double Tripwire| Heatmap| Human & Vehicle Classification |
| AI | Tripwire| Double Tripwire| Perimeter| Object Abandon| Object Lost| Loitering| Running| Parking| Crowd Detection| People Counting| On Duty Detection| Video Abnormal| Audio Abnormal| Face Capture| Human/Vehicle Classification |
