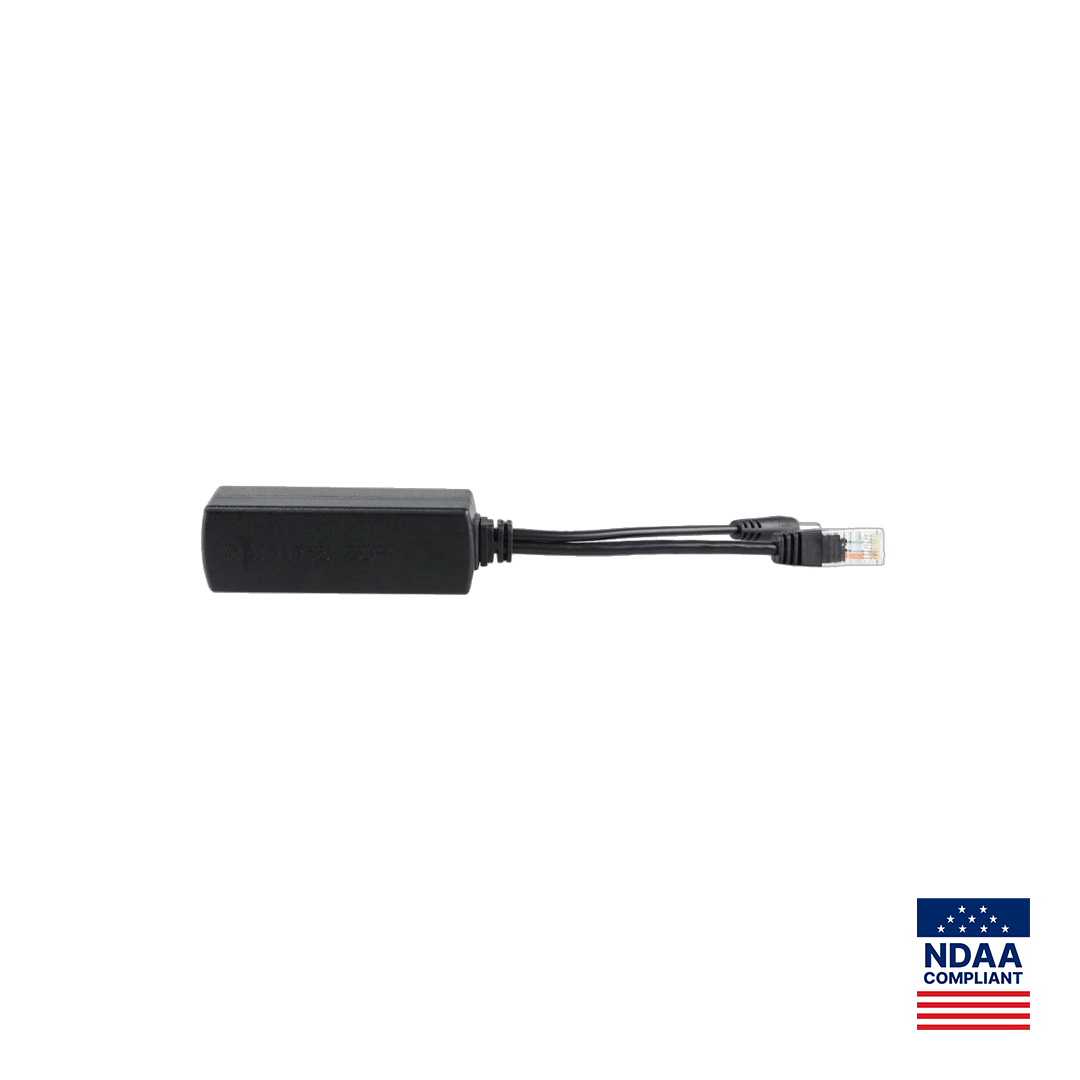

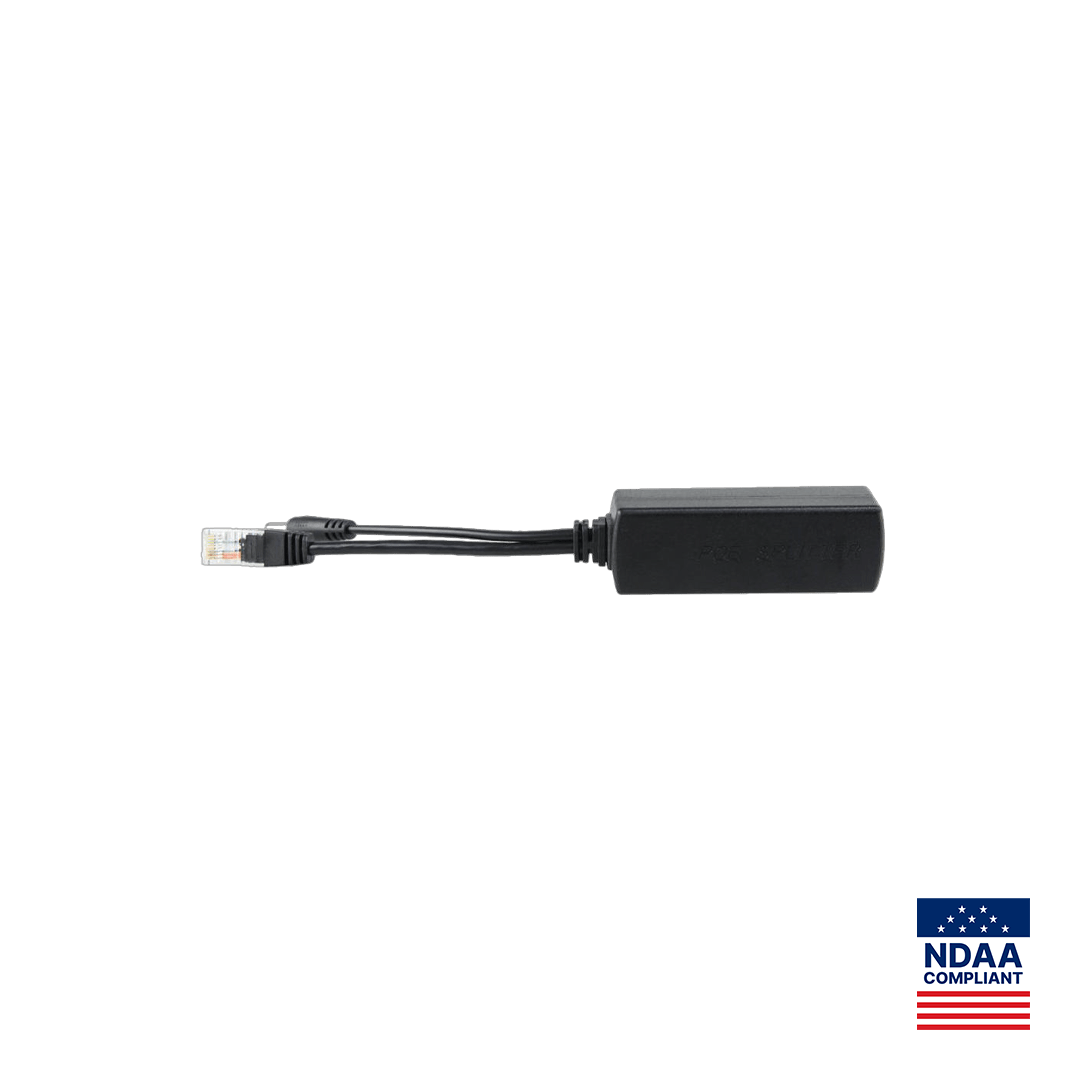

CS-PD5202
Description
Description
- 10/100Mbps fast Ethernet
- Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
- Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.
- Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency
- Support short circuit, over current and over temperature protection
- 1500V high voltage isolation (input stage to output stage) (only applicable to CS-PD5202,CS-PD5202-at)
- CDC interface has dustproof and waterproof measure
Have a question?
- Description
- Specifications
- Download
- Product Reviews
- 10/100Mbps fast Ethernet
- Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
- Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.
- Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency
- Support short circuit, over current and over temperature protection
- 1500V high voltage isolation (input stage to output stage) (only applicable to CS-PD5202,CS-PD5202-at)
- CDC interface has dustproof and waterproof measure
| Spec Sheets | CS-PD5202 |
|---|---|
| Ports | 1×10/100Base-TX RJ45 port (Data) ,1×8P male output port (Data) ,1×DC5521 power port (Power) |
| PoE Standard | IEEE802.3af/at |
| Max PoE Power/Port | 13W |
| Total PoE Budget | ≤100m (Cat5 or higher) |
| Uplink Ports | - |
