CSP-I8MS EX-I-2.7-13.5mm

Application Scenarios

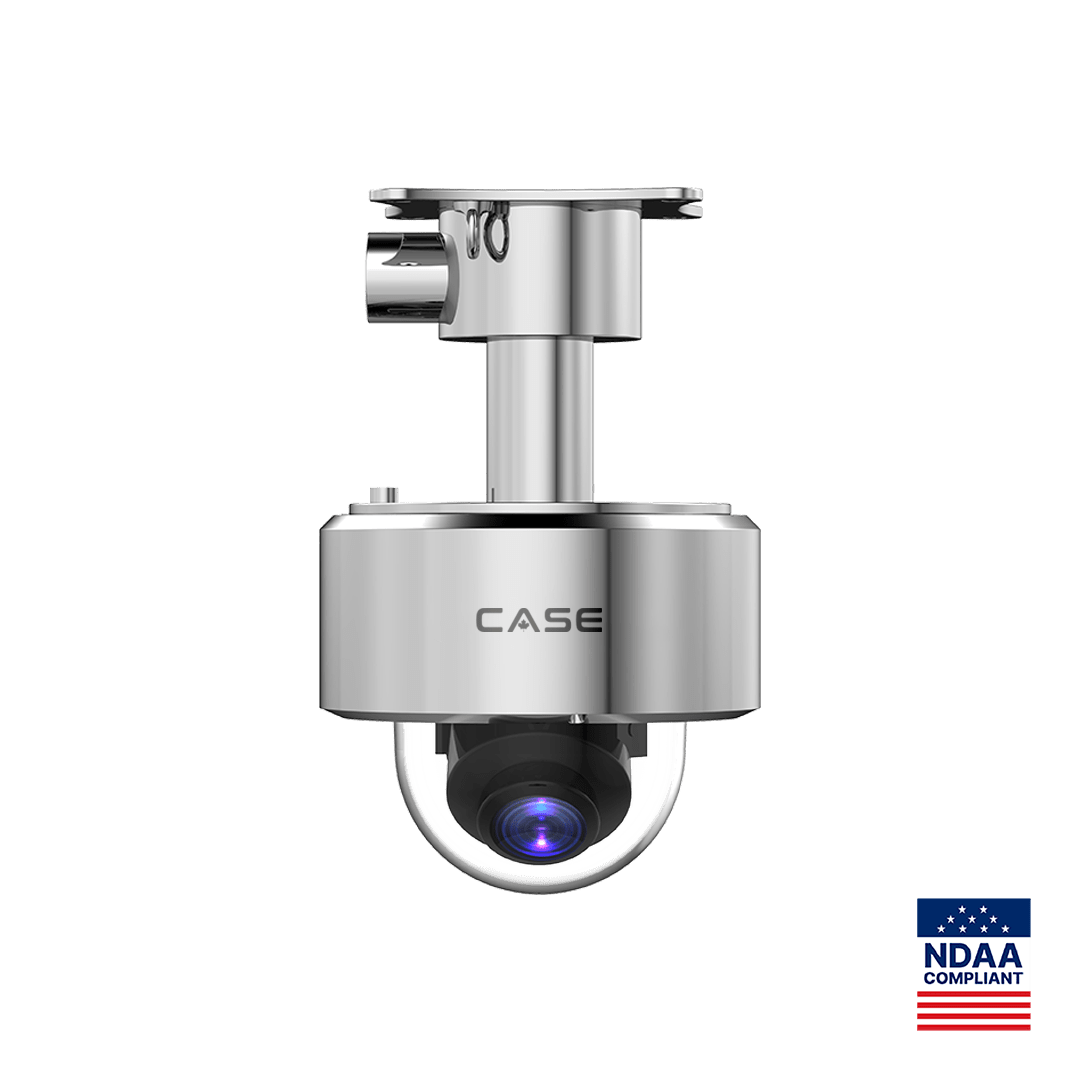

The ATEX- and IECEx-certified CSP-I8MS EX-I-2.7-13.5mm is a classic explosion-proof and corrosion-proof camera designed by CASE. It can accommodate a wide range of cameras and holds Group II explosion-proof and temperature class certifications.
This housing is suitable for use in Zone 1 and Zone 2 hazardous areas where explosive gas mixtures of Group IIA, IIB, and IIC (T1 to T6) may be present, as well as in Zone 21 and Zone 22 areas where combustible dust can occur. It is ideal for applications such as oil refineries, oil and gas extraction, chemical plants, petrol stations, and other similar high-risk industrial environments.

KEY FEATURES
· ATEX, IECEx certified
· Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22
  Ex db II CT6 Gb/ Ex tD A21 IP68 T80℃
· Stainless steel 304/316L
· Optional electropolished or corrosion resistant paint finish
· Enclosure Protection: IP66, IP68 (2m, 2h)
· 8MP, Up to 3840×2160@30fps
· Motorized Lens 2.7-13.5mm
· S+265/H.265/H.264/M-JPEG
· Power input: DC12V or POE power supply
· S+265/H.265/H.264/M-JPEG
· Min. illumination Color: 0.003Lux@F1.6
· Smart IR, IR Range: 50m
· Support Video Analytics
· Support Human/Vehicle Classification
· Built-in Mic, audio I/O 1/1, alarm I/O 2/1
· Plugin Free
· Operating Conditions -40°C ~ 60°C / Less than 95% RH
