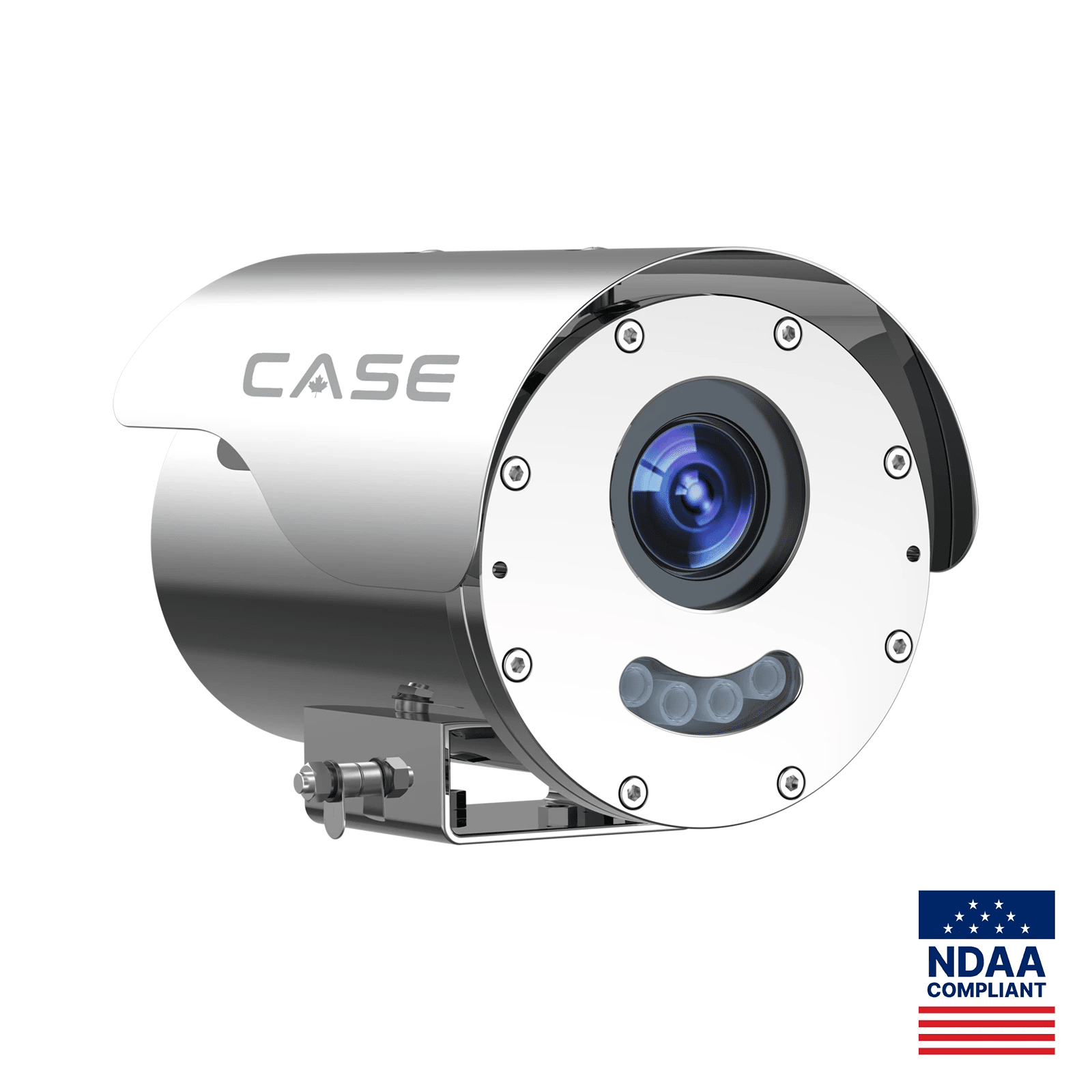

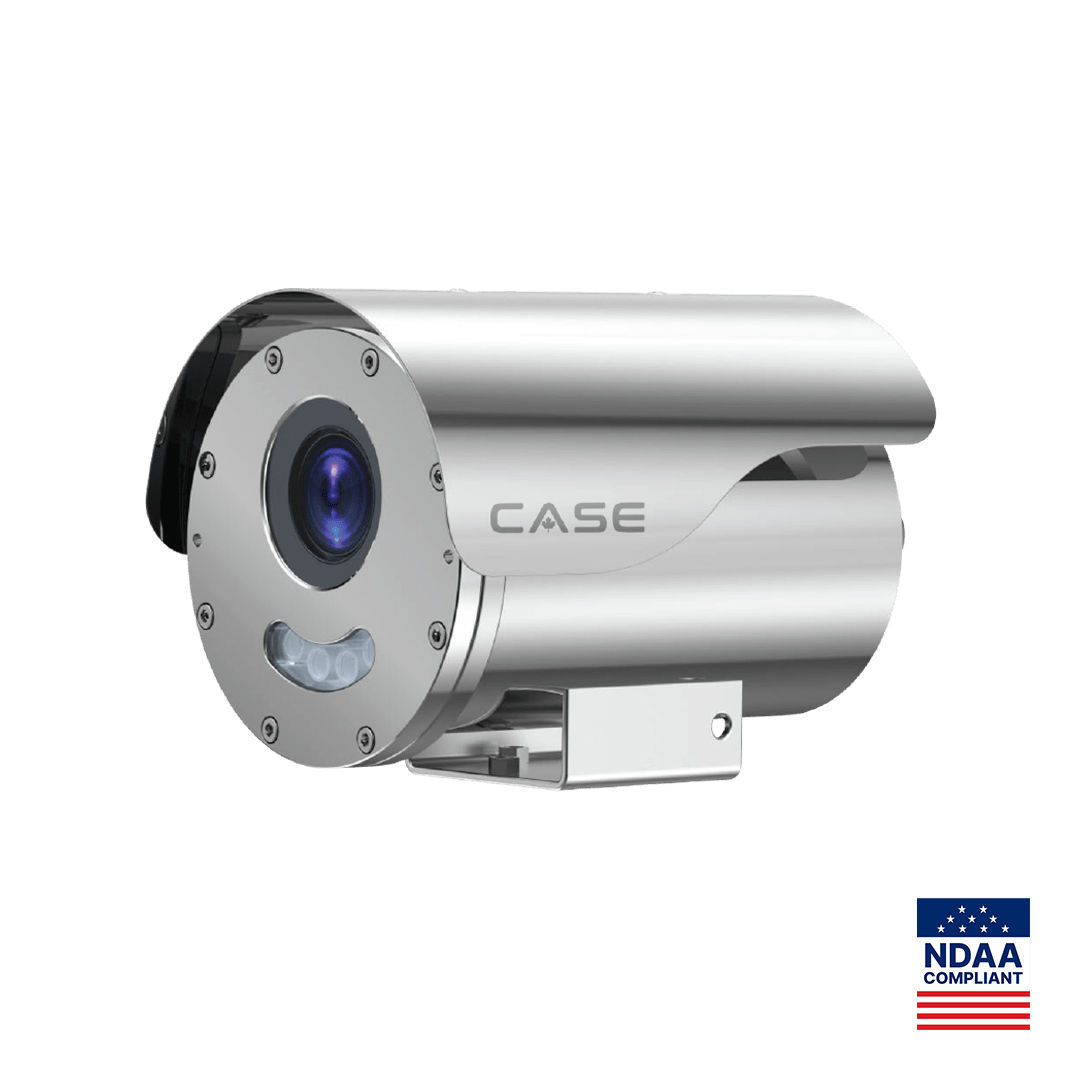

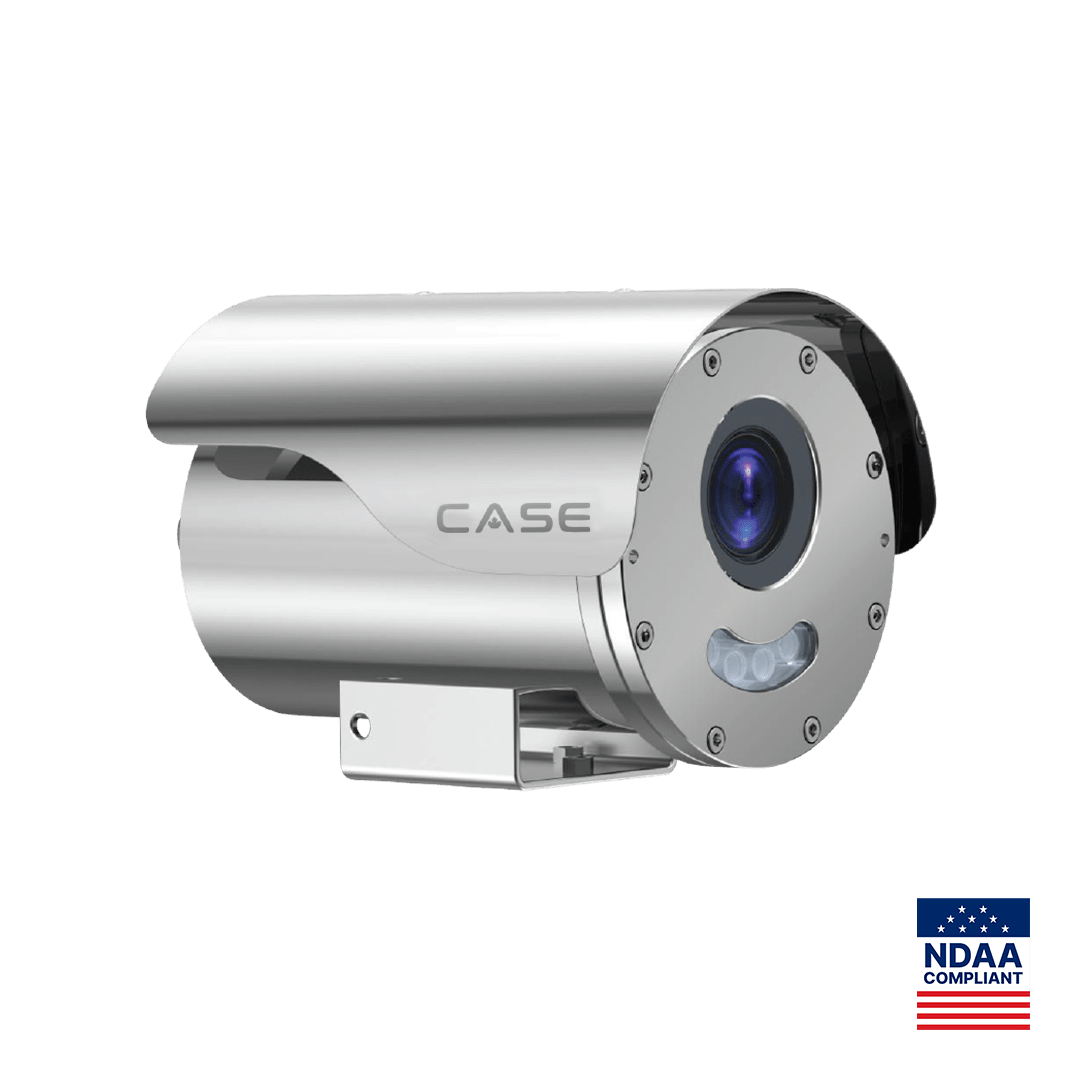

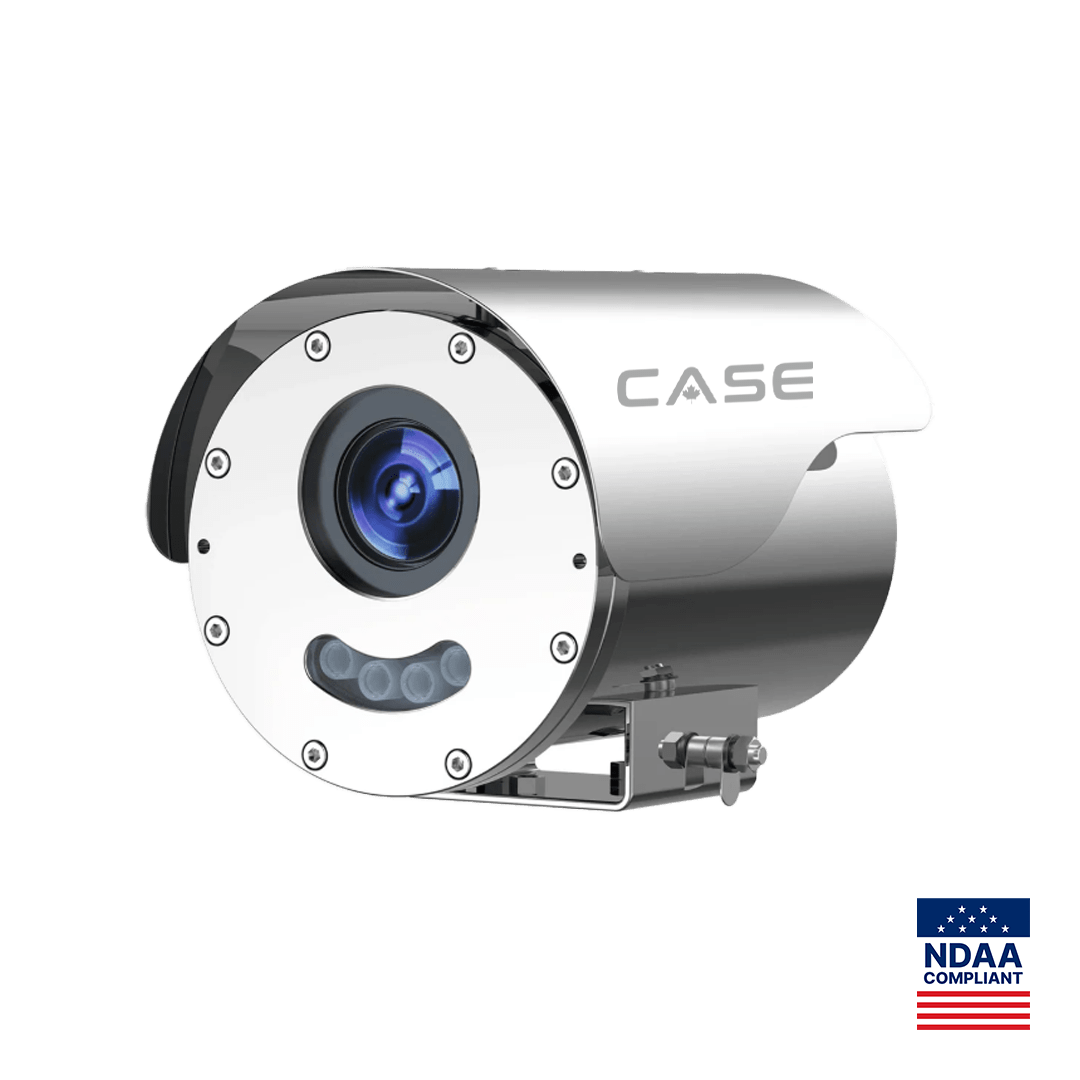

CS-I8PS EX-I-2.7-13.5mm
Description
Description
Application Scenarios
The ATEX & IECEx certified-classic explosion-proof corrosion-proof camera, which can load various camera.
This product has obtained group II explosion-proof level certification and temperature level certification, applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. For example: refine, oil extraction, gas extraction, chemical, petrol station and other environment.
KEY FEATURES
· ATEX, IECEx certified
· Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22
· Ex db IIC T6 Gb/ Ex tb IIIC T80℃ Db
· Stainless steel 304/316L
· Optional electropolished or corrosion resistant paint finish
· Enclosure Protection: IP66 IP68 (2m 2h) IP69
· 8MP, Max. 3840*2160 resolution
· 1/2.8" progressive scan, CMOS image sensor
· Motorized vari-focal lens 2.7-13.5mm
· Power input: DC12V or POE power supply
· S+265/H.265/H.264/M-JPEG
· Built-in IR LED, up to 80m distance
· Enclosure Protection: IP66 IP68 (2m 2h) IP69
· Min. illumination Color: 0.01Lux@F1.6
· Intelligent monitoring: Intrusion, tripwire.
· Support Human/Vehicle Classification
· Support Face Capture Mode
Have a question?
Notified by email when this product becomes available
- Description
- Specifications
- Download
- Product Reviews
Application Scenarios
The ATEX & IECEx certified-classic explosion-proof corrosion-proof camera, which can load various camera.
This product has obtained group II explosion-proof level certification and temperature level certification, applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. For example: refine, oil extraction, gas extraction, chemical, petrol station and other environment.
KEY FEATURES
· ATEX, IECEx certified
· Application: Gas zone 1 and zone 2; Dust zone 21 and zone 22
· Ex db IIC T6 Gb/ Ex tb IIIC T80℃ Db
· Stainless steel 304/316L
· Optional electropolished or corrosion resistant paint finish
· Enclosure Protection: IP66 IP68 (2m 2h) IP69
· 8MP, Max. 3840*2160 resolution
· 1/2.8" progressive scan, CMOS image sensor
· Motorized vari-focal lens 2.7-13.5mm
· Power input: DC12V or POE power supply
· S+265/H.265/H.264/M-JPEG
· Built-in IR LED, up to 80m distance
· Enclosure Protection: IP66 IP68 (2m 2h) IP69
· Min. illumination Color: 0.01Lux@F1.6
· Intelligent monitoring: Intrusion, tripwire.
· Support Human/Vehicle Classification
· Support Face Capture Mode
| Camera Type | Special Cameras, Explosion-Proof Solutions |
|---|---|
| Image Sensor | 8MP |
| Minimum Illumination | 0.01Lux@F1.6 |
| Max. IR Distance | 80m |
| Material | Stainless Steel |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Built In Microphone | Yes |
| Video Compression | S+265/H.265/H.264 Motion JPEG |
| Spec Sheets | CS-I8PS EX-I-2.7-13.5mm |
| Max. Resolution | 8MP |
| Weatherproof | IP69 |
| Series | Intelligent |
| Lens | 2.7-13.5mm |
| AI | Tripwire| Double Tripwire| Perimeter| Object Abandon| Object Lost| Loitering| Running| Parking| Crowd Detection| People Counting| On Duty Detection| Video Abnormal| Audio Abnormal| Heatmap| Safety Helmet Detection| Human/Vehicle Classification |
